Machine descriptionÂ

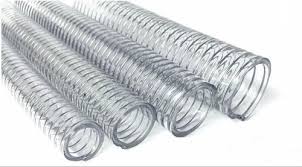

1. The wall of Pipe is transparent soft PVC with spiral steel wire inside.
2. PVC steel wire pipe is suitable for the conveying of high pressure or explosive gas and liquid, heavy suction and delivery of liquid sludge. PVC steel wire reinforced pipe is mainly used for chemical industry, building and vacuum pumps
3. If you want to print letters on the surface of the pipe, you can chose Ink printing machine or a spray code machine.

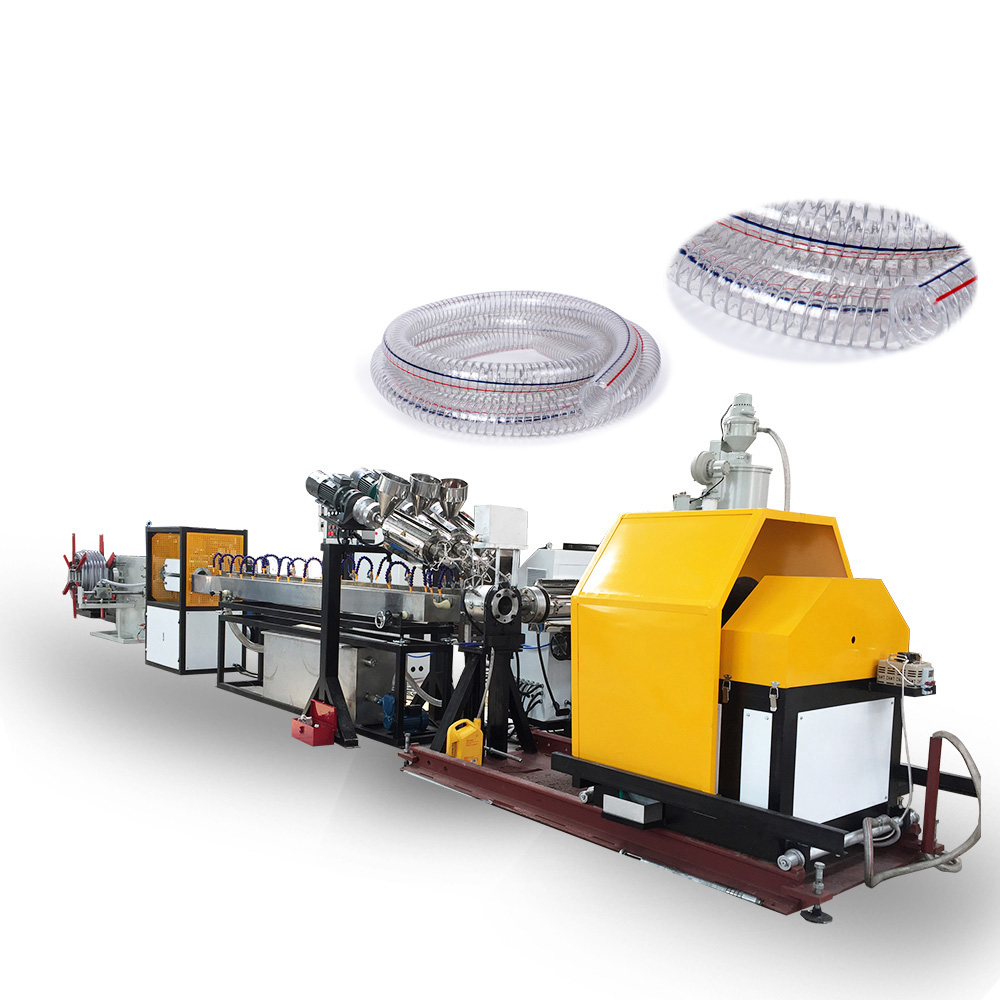

PVC steel reinforced hose production line
1. Material: Soft PVC granules and other special auxiliary material.
2. Easy operation, advanced design, energy conservation, environmental protection, high capacity.
3. Special machines used in PVC steel wire reinforced hose production line
Machine parameters
| Model |
SJ-45 |
SJ-65 |
SJ-90 |
SJ-120 |
SJ-150 |
| Extruder |
SJ45/28 |
SJ65/28 |
SJ90/28 |
SJ120/28 |
SJ150/28 |
| Diameter  Range(mm) |
10-20 |
20-50 |
50-100 |
100-150 |
150-200 |
| Output(kg/h) |
20-40 |
40-75 |
100-130 |
120-150 |
150-200 |
| Installed  Power(KW) |
30 |
40 |
50 |
75 |
110 |
Technical Specification
| Weight |
6000 kg |
| Dimensions |
20000 × 2200 × 1800 mm |
Machine features:
PVC fiber reinforced hose extrusion line is suitable for the production of PVC fiber reinforced pipe. These kinds of pipe are made of three layers structure. The inner and the outer layers will be made of PVC plastics and the middle layer is made of terylene fiber reinforced net.
Technical parameters:
| Diameter scope (mm) |
6-25 |
8-38 |
| Extruder |
SJ45/25 |
SJ65/25 |
| installed  powder (KW) |
39 |
66 |
| Max. Â capacity (kg/h) |
35-65 |
35-80 |
| Total  weight(T) |
4.5 |
6 |
Product application:
1. Industrial liquid transportation
2. Daily life water transportation
